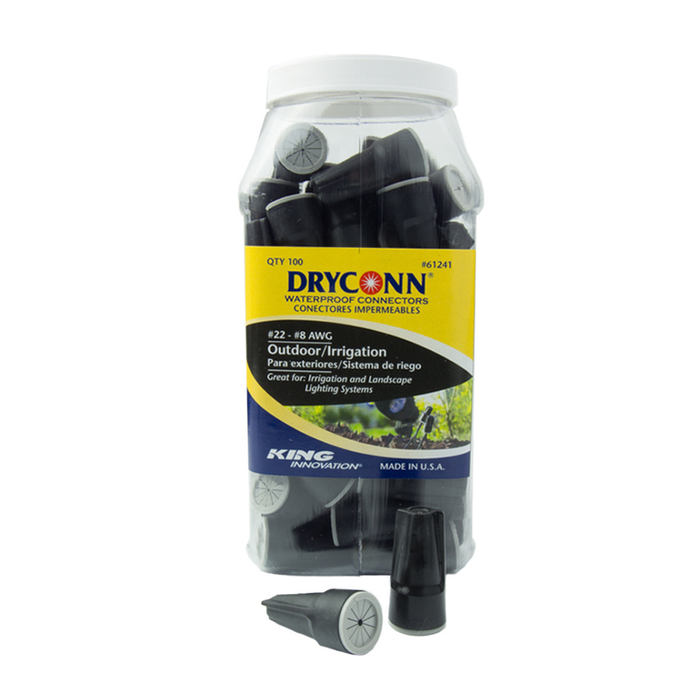

Dryconn - Outdoor Irrigation Wire Connectors (100 ct., Medium) - 61241

61241 - Black/Gray Waterproof Wire Connectors (100 ct. Canister) - Min #22/Max #8 - Medium Size

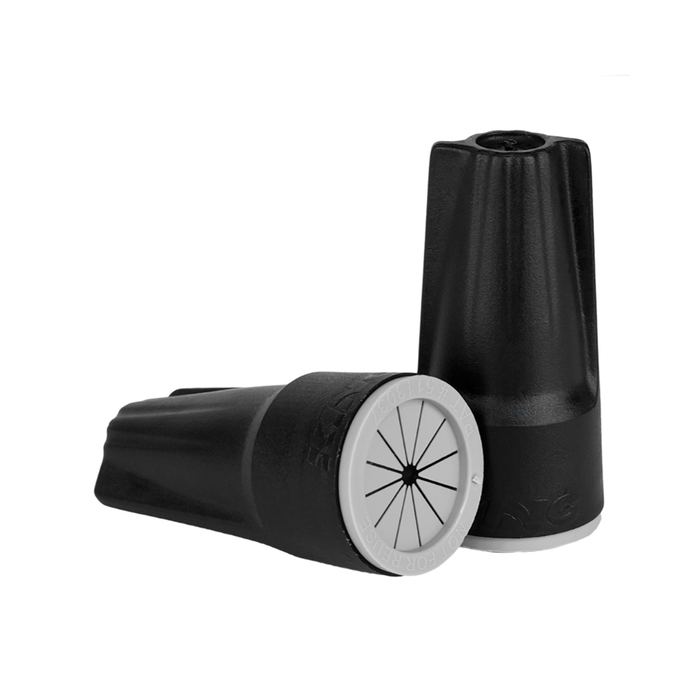

The original Black Connector

FEATURES & BENEFITS:

• UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
• For use in Direct Bury applications when operating at 30V or less
• Impact resistant
• #1 in the industry
• Waterproof and corrosion proof
• One-step® installation saves time and money
• No pre-twisting required
• Pre-filled with dielectric silicone sealant that never hardens

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 600V max. building wire (1000V max. signs or luminaires)
• Connector Size: 1 19/64” x 43/64”
• Wire Type: Copper/Copper
• Wire Range: Min #22/Max #8
• Temperature Rating: 105°C (221°F)
• Silicone Sealant: -45°F to 400°F
• UL Designation: MWP

Documents

• King Innovation Product Guide
