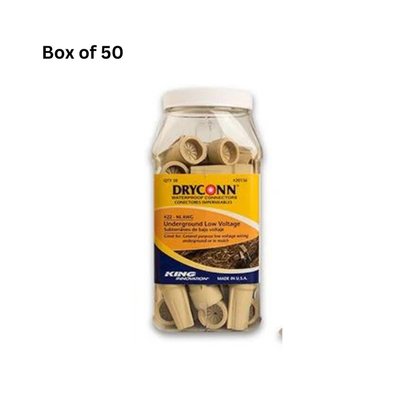

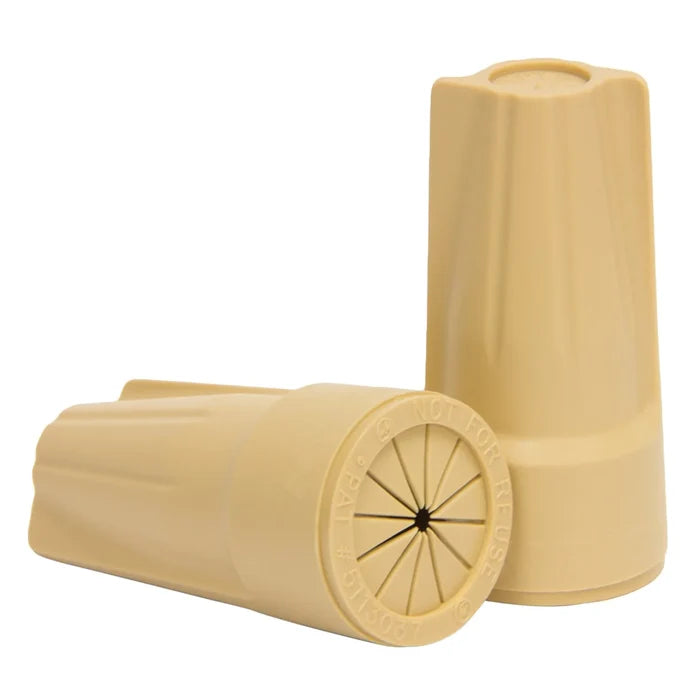

Dryconn - Tan Low Voltage Wire Connectors (50 ct.) - 20122

20122 - Tan Low Voltage Waterproof Wire Connectors - Min #22/Max #6 - 50pc. Bag

FEATURES & BENEFITS:

• Waterproof and corrosion proof
• For low voltage applications - 30V/10 AMPS Max
• No junction box required
• No pre-twisting required
• One step installation saves time and money
• Filled with petroleum based sealant that never hardens
• For use with solid and stranded wire
• Suitable for all low voltage applications
• For use in lighting, irrigation, and low voltage underground wiring

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 30V/10 AMP
• Connector Size: 13/16" x 1 9/16"
• Wire Type: Copper/Copper
• Wire Range: Min #22/Max #6
• Temperature Rating: 75°C (167°F)
• Petroleum Sealant: -29°F to 250°F

Documents

• King Innovation Product Guide
