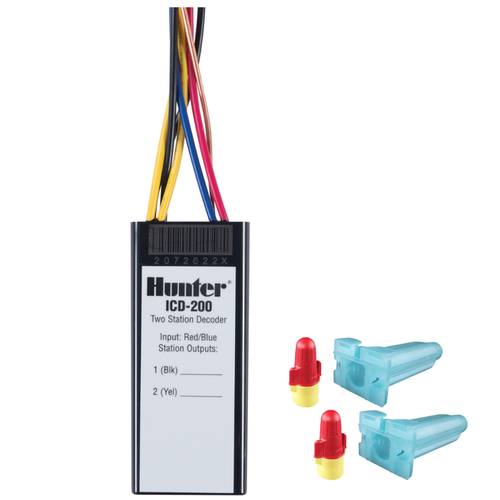

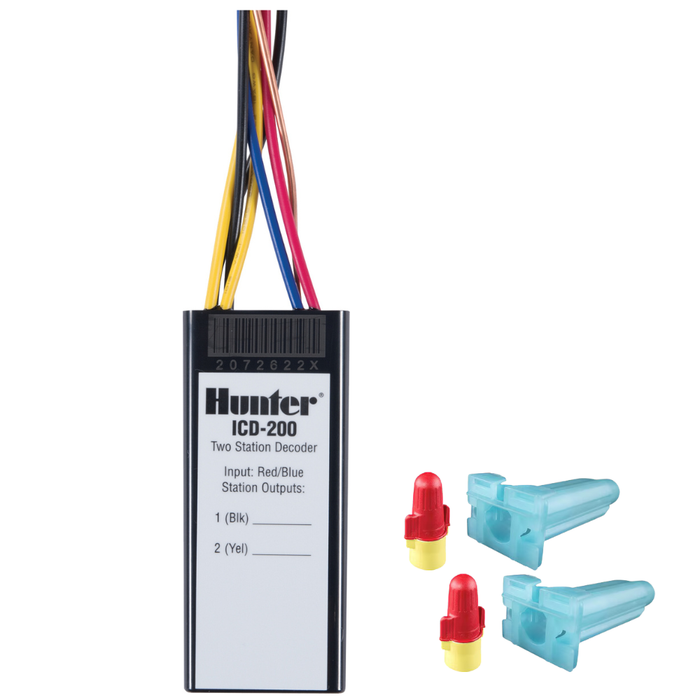

Hunter - ICD200 - 2 Station Decoder

Key Benefits

• (2) DBRY-6 waterproof connectors included for two-wire path splices
• ICD decoders are compatible with Hunter ACC2 Decoder Controllers and legacy ACC-99D Decoder Controllers.
• 1-, 2-, 4-, and 6-station versions provide maximum flexibility
• Sensor decoders allow flow and Clik sensor monitoring via the two-wire paths
• Field-programmable decoders accept station numbers directly, and do not require entering serial numbers into the control panel
• Decoders can be programmed before installation at the controller interface
• Wireless programming with ICD-HP allows for decoder programming or re-programming after installation to the two-wire path
• Integrated surge protection eliminates the need for extra surge protection devices
• Color-coded wiring connections simplify installation

Operating Specifications

• Maximum recommended distance, decoder to solenoid: 150'
• Maximum distance to decoder via two-wire path:

            - 14 AWG wire path: 10,000'
            - 12 AWG wire path: 15,000'

• Approvals: UL, cUL, FCC, CE, RCM
• Decoder rating: IP68 submersible
• Warranty period: 5 years

Downloads

• ICD Product Cutsheet
